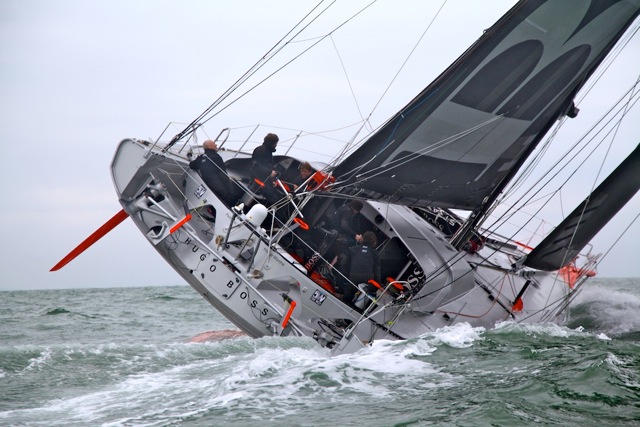

Photo: C.Launay/ Alex Thomson Racing/ HUGO BOSS

“It’s about finishing the race.”

Caterham Composites provides the design and structural engineering of the emergency rudder concept, for the IMOCA 60 yacht of Alex Thomson Racing.



Key Highlights

Marine, Offshore Racing

Challenge

To design a lightweight fix for a broken rudder, giving the skipper the opportunity to sail to safety, and complete the race, without assistance.

Solution

A lightweight rudder sleeve that fits over the broken section, and provides the same hydrodynamic qualities.

Results

A simple solution that is saves weight and is easy to use, delivered on time and on budget.

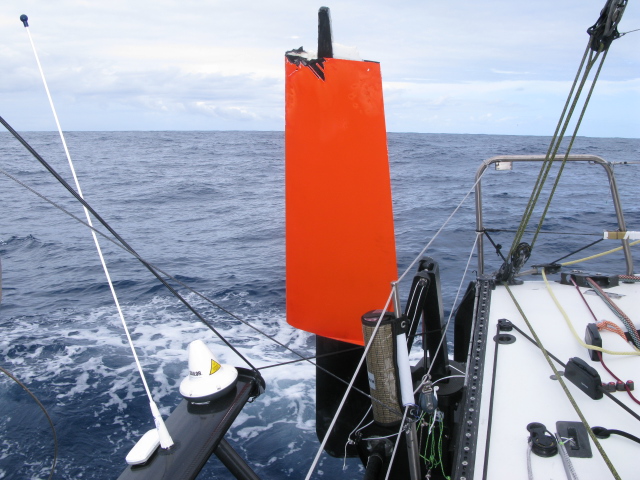

Broken Rudder - Photo by Alex Thomson Racing

Overview

The Vendée Globe, founded by Philippe Jeantot in 1989, is a round-the-world, single-handed yacht race. The race is sailed non-stop and without any assistance for approximately three months. The Vendée Globe starts in Les Sables d’Olonne, France taking the skippers to the Cape of Good Hope, around Antartica, and back to Les Sables d’Olonne Cape - Leeuwin and Cape Horn are the only ports for the participants. For Alex Thomson, the Vendée Globe is about finishing the race. “For me - personally I have to finish this. That is what it is about - finishing.”

The emergency rudder is designed to give Alex a lightweight, easy-to-install method of steering the boat, without requiring any external assistance, which would allow him to sail to safety or even finish the race.

The challenge

ATR’s yacht is one of the fastest in the world and extreme pressures are put onto the rudder even in normal sailing conditions. During his race around the world, Alex will encounter extreme storms and huge waves plus the ever-present danger of floating objects in the water. There is a real risk of damaging or breaking a rudder. This would leave Alex in a potentially dangerous situation and so a solution is needed. An entire replacement would weigh 20kg and be very difficult for Alex to fit whilst at sea and on his own.

The concept is a development of something ATR trialled and used in a previous race with some success. We were given the brief to design a rudder that would fit over whatever remained of the standard rudder, and allow Alex to sail at 75% of full performance to the finish. The sleeve had to be as light as possible and match the hydrodynamic characteristics of the existing rudder.

The solution

The solution is a sleeve that fits over the remains of the rudder and matches the hydrodynamic performance of the rudder and its structural strength and stiffness. The original rudder is comprised of the outer profile and a stock to transmit the torque and to provide stiffness. The emergency rudder sleeve must do the job of both in one structure.

We had recently performed a structural review of the rudder and stock on the yacht, and therefore had a good knowledge of the loads already. During past discussions with ATR on the previous use of this concept we managed to agree on how to model the load cases. The next challenge was to define the performance available to Alex when this emergency system was in use. We created the 3D model and designed a baseline laminate. One of our engineers then took this model and base laminate and, using HyperWorks, optimised the patch sizes, orientations, thicknesses and the order of these to provide the lightest solution.

The rudder we developed is an emergency system and not a racing system. We knew that the performance would be below 100% and thus, would be a trade off between weight and performance. By using HyperWorks optimisation, we achieved the perfect balance.

Results/Benefits

The result is a hydrodynamic structure that provides the strength and stiffness required for Alex to still be able to push the boat but at a weight of only 9 kg. This is a 10% reduction in weight on the base laminate whilst also being 23% stiffer and 72% stronger.
