Humphreys Class40 in build

Latest design due for launch in May for Austrian owner

Wednesday March 27th 2013, Author: James Boyd, Location: none selected

Construction is now well down the line on the new Humphreys designed Class40, due for launch in May 2013.

The design is for an Austrian owner and is being project managed and skippered by Andreas Hanakamp, former skipper of Team Russia, the Humphreys designed VO70 that competed in the 2008/09 Volvo Ocean Race.

The new Class40 has been designed with Global Ocean Race compliance in mind with Class40 minimum freeboard, maximum allowed deck edge chamfer and a relatively aft positioned coachroof, which contribute to minimising the required deck volume, benefitting the design in terms of deck weight and VCG. The large deck edge chamfer also aids the design during the 90° pull down test, effectively allowing a lower VCG for the same maximum measured righting moment, of 320kgf, measured at the masthead.

Humphreys Yacht Design (HYD) has worked closely with CFD specialists KND-SailingPerformance during the optimisation of the hull, appendages and sail plan. The design brief for this boat  was to optimise performance for the Global Ocean Race. Initially KND-SP ran a performance analysis using real data downloaded from a Class 40 sailed  in double-handed mode. This gave HYD a useful insight into how a well sailed, double-handed Class 40 performs in the open ocean in real terms against its design polars – what is often referred to as "percentage polars". As expected, when sailing shorthanded, the data revealed that it is a lot easier to maintain or exceed target boats speeds at points of sail that are either less sea state-dependent and/or require less interaction from the crew in terms of helming and trimming and we felt it imperative that the weather and routing study, which ultimately forms the optimisation criteria for the design, should account for these ‘real’ factors.

KND-SP followed this up with a CFD & VPP study on our first series of design candidates. This allowed HYD to verify the data from its own in-house CFD and VPP software, enabling them to go on and investigate an even greater area of the design space. A vast range of design parameters were investigated including beam/wetted area/stability trade-offs, volume distribution and bow fullness, chine height and orientation, transom immersion as well as aero aspects such as the rig geometry and sail inventories.

HYD worked closely with Andreas Hanakamp through the design optimisation process. The best/most interesting six designs were presented and analysed at great lengths before the final selection was made. The chosen design candidate exhibits the best all round performance of the six proposed candidates. Through careful control over upright wetted surface area and heeled volume distribution, the hull form displays strong light air and VMG performance, yet with significant grunt for high speed stability sailing conditions.

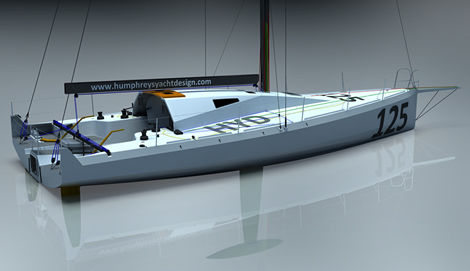

The deck and cockpit design features a relatively conventional twin tiller type arrangement, offering excellent helming visibility. The deep cockpit helps drive the VCG even lower but also offers reassuring protection for the crew along with the coachroof overhang. There is a raised tunnel down the centre of the cockpit to allow access through the transom escape hatch. This version will feature a minimalist four winch layout, though some interesting ideas are afoot to free up some of the usual winch functions.

Structural engineering is by the New Zealand based company Pure Design & Engineering, noted for their role as lead engineers for Emirates Team New Zealand, including their two AC72 catamarans. The engineering and detail design has very much been VCG-driven. Ultimately the lower you can drive the VCG, the smaller and lower drag the required bulb is to meet the rule maximum righting moment.

Lowering the VCG has also been a fundamental driver of the rig design process, where HYD worked closely with Southern Spars. Starting with a clean sheet of paper, Southern Spars performed a complete review of possible rig geometries, including various combinations of rig position, foretriangle height, deck v keel stepped, swept v inline spreaders and 2 v 3 sets of spreaders. The resulting rig layouts, weights and VCG values enabled us to run the various geometries through our VPP to monitor the effects on performance attributed to the differences in pitch gyradius, windage and variations in the distribution of sail area.

The Class40 is currently in build at Ocean Tec in Slovenia, a yard vastly experienced with resin infusion technology. Construction is in the form of infused epoxy/E-glass /foam sandwich. Unlike typical serial production Class 40, construction utilises thermoformed pin-hole foam to minimise resin content within the sandwich laminate as well as a paint (rather than gel coat) finish resulting in considerable weight savings.

This new Class 40 design is offered in either custom or semi-custom packages. As a result of some innovative tooling methods and direct access by the yard to three dimensional CNC milling, extremely cost effective tooling can be produced which opens the door to continued design development and a high degree of customisation, but at a cost more akin to a productionised offering.
